mode

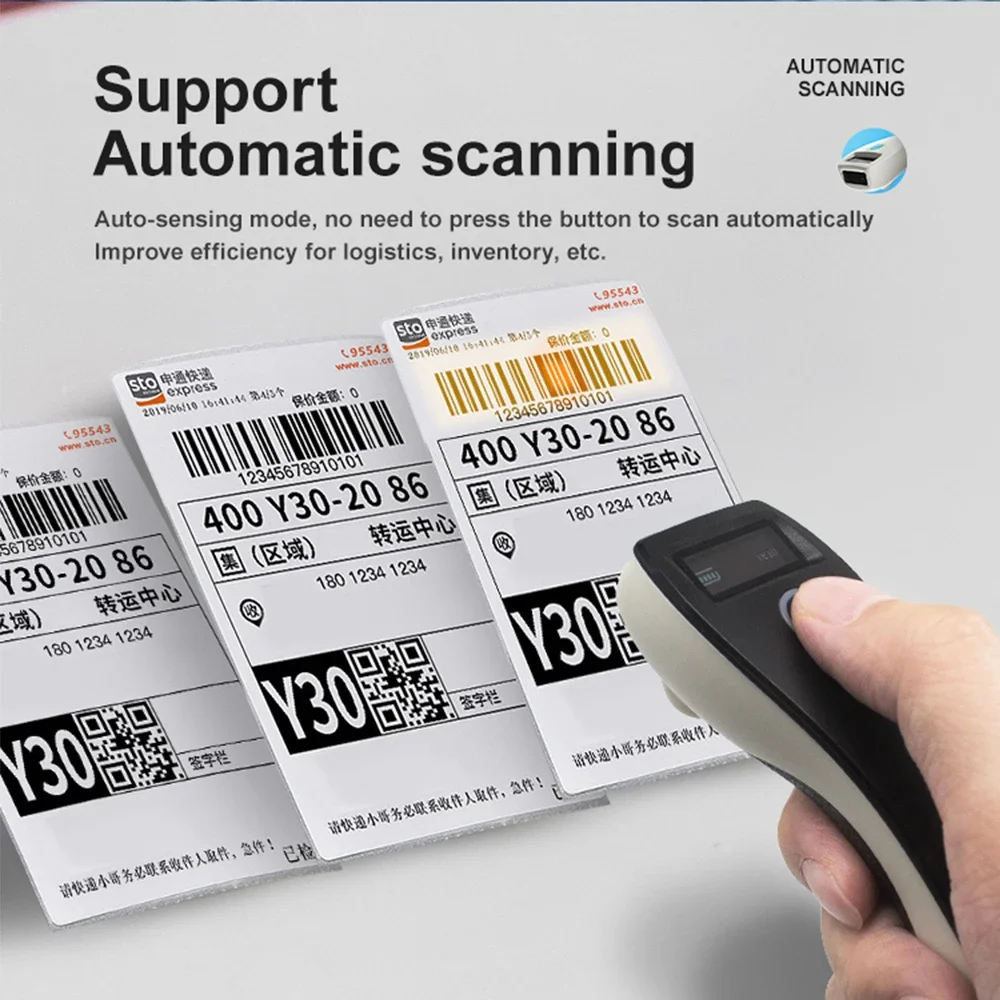

Key trigger/ autosensing/ continuous scanning

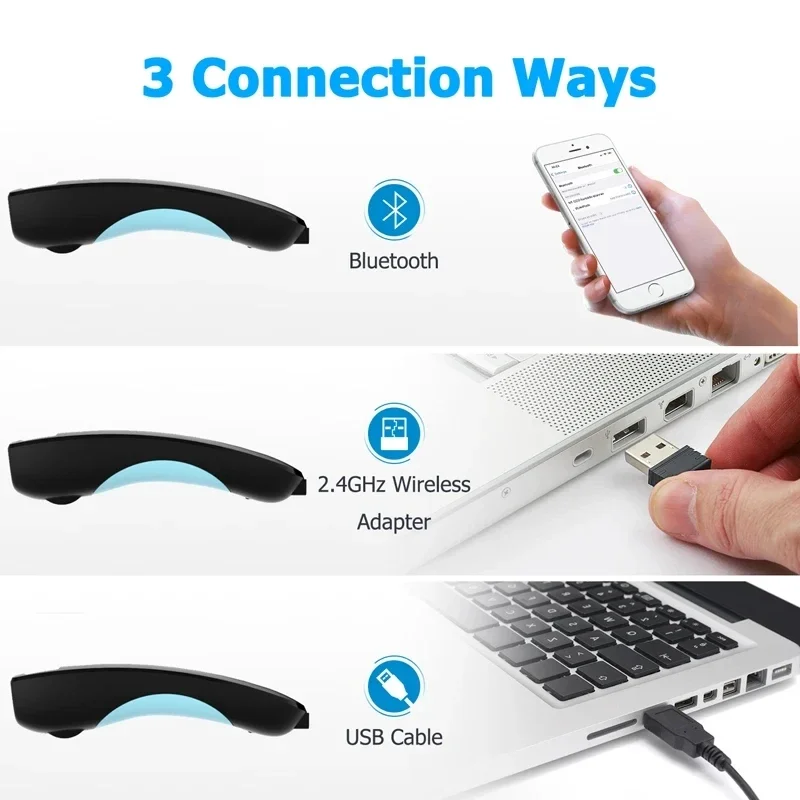

Communication interface

USB-HID /USB-COM

Wireless communication distance

Wireless 2.4G: 0-80m (open environment)

Bluetooth: 0-20m (open environment)

Prompt mode

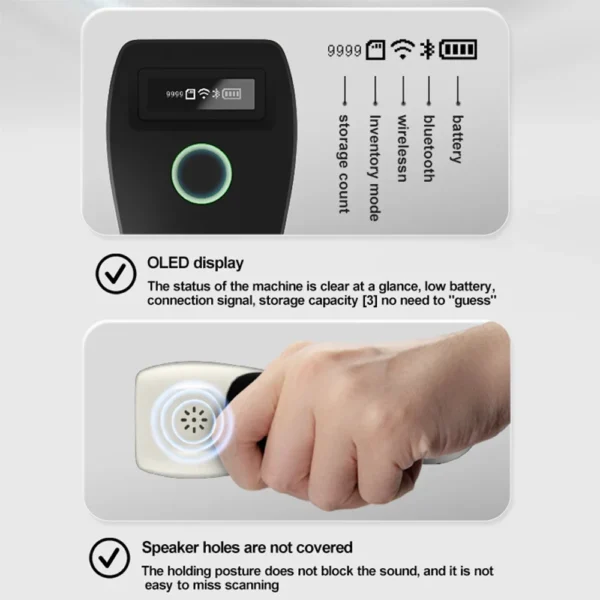

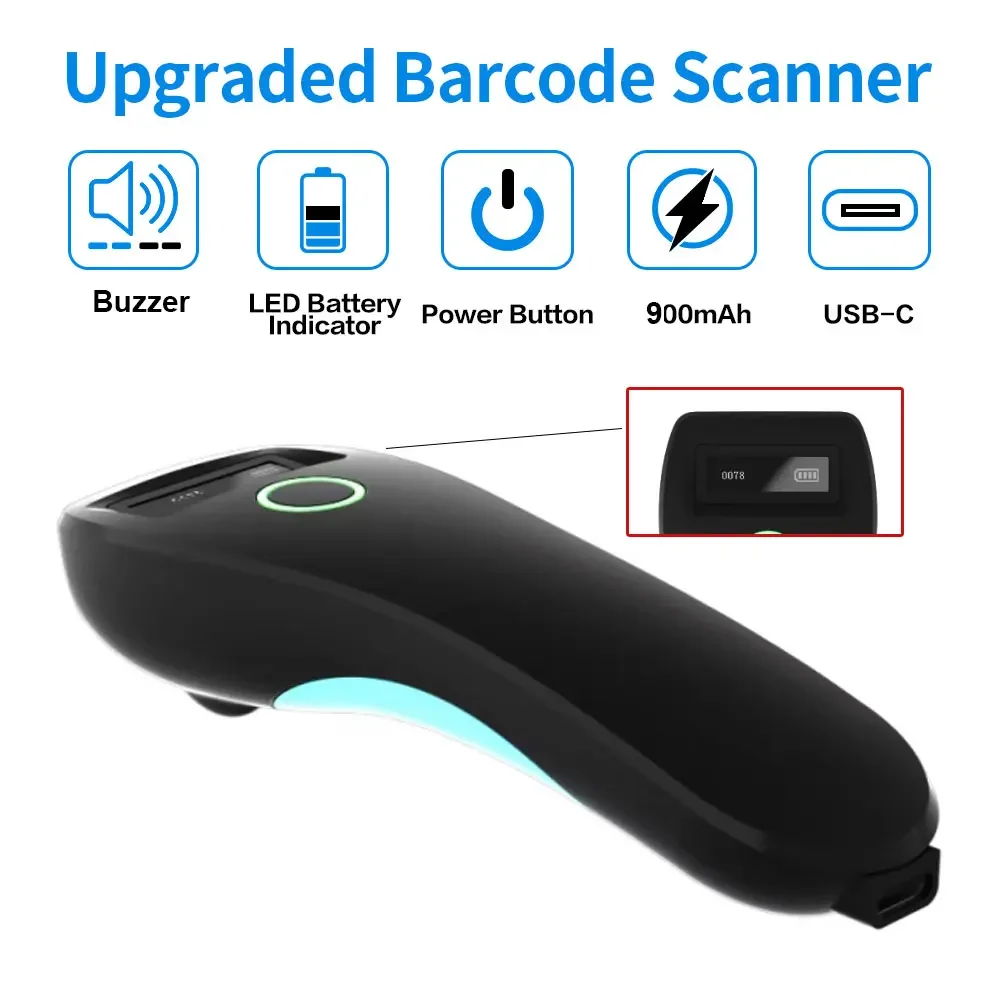

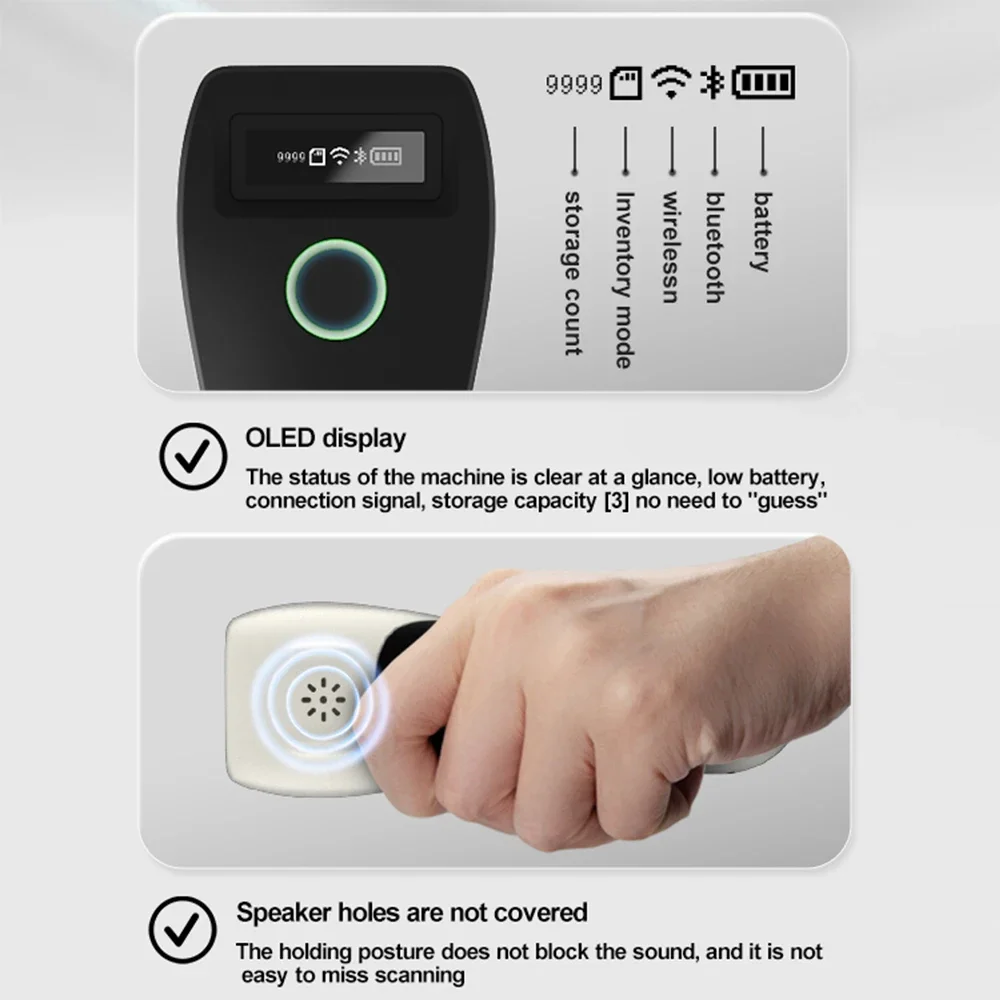

Buzzer, LED light, display, vibration motor

How it is set up

Manually scan the setup codes one after the other

Housing material

ABS+PC

Cable standard

USB Straight Line 1m

Exterior dimensions

122mm×42mm×30.5mm (barcode scanner)

Weight

60g (net weight)

Performance parameters

Internal storage

900K

Sensors

300,000 CMOS

Resolution

640*480

Light source

White LED

Scan angle

±60°, ±60°,360° (Elevation angle, declination angle, corner of rotation)

Scan rate

120 fps

Field of view

48° (H) x 30° (V)

Printing contrast

Min. 15%

Decoding kind

1D: EAN- 13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, CodaBar, Code 128, Code93, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, GS1 Databar(RSS), Code 39, Code 11, MSI-Plessey,etc

2D: QR Code,Data Matrix,PDF417,Micro QR, Aztec,etc,Support mobile phone screen code reading

Minimum resolution

1D 3MIL;2D 5MIL

Depth of field

QR (20mil) 10~130mm

Data Matrix(10mil) 20~100mm

PDF 417 (7mil) 25~105mm

EAN-13 (13mil) 30~175mm

Code 39 (8mil) 25~145mm

Code 128 (7mil) 25~110mm

Electrical parameters

Input voltage

DC 5V±10%

Current

Working: 350 mAh; Standby: 130 mAh

Battery

900mAh lithium-ion battery

Charging time

About 2 hours

Battery life

5 days (standby), 12 hours (working: scan every 5 seconds)

Environment parameters

Temperature

0°C-50°C (working); -40°C~+60°C (storage).

Humidity

5%-95% non-condensing

Ambient brightness

Max.5,000 Lux (fluorescence)

Seismic resistance

It can withstand a drop in the air of 1.5m
